Bailout pins.

Click on image to view larger image

Photo Details

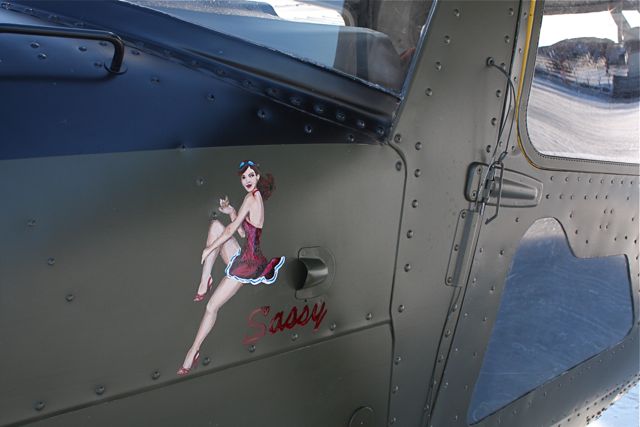

Jonas Pilot Senior Member Registered: April 2005 Location: Wolfeboro, New Hampshire is my home, 24-7-365 Posts: 1,686	Notice the cable that runs to the door hinges. A quick yank and the door flies away allowing the pilot to bailout.
	· Date: Sun January 17, 2010 · Views: 3412 · Filesize: 24.4kb, 34.1kb · Dimensions: 640 x 427 ·
	Additional Info

	Linked Thumbnail:

Author

Thread

RLW

Senior Member

Registered: July 2002
Location: Alton Bay on the mountain by a lake
Posts: 2,023

Mon January 25, 2010 4:19pm

How does that work. It appears to be mounted to the outside of the plane or are you saying that it is a emergency escape while on the land that rescue people pull it?

------------------------------
[SIGPIC][/SIGPIC]There is nothing better than living on Alton Mountain & our grand kids visits.

Click here to Send this user a Private Message

Jonas Pilot
Senior Member

Registered: April 2005
Location: Wolfeboro, New Hampshire is my home, 24-7-365
Posts: 1,686

Tue January 26, 2010 5:16pm

As I was shooting the image an older gentleman came up to me and explained, "See the cable that comes out of the fuselage? There is a handle inside that the pilot can yank that pulls the cable that pulls the pins out of the hinges". He went on to say that "As soon as the pins are pulled the door will be pulled away by the rushing air allowing the pilot quicker exit to bail out". Notice there are two cables, one attached to the top hinge and another that connects to the bottom one. You can see the bottom cable in front of the rivets in front of the door.
